CoolDry field test result

19.7.2010 / 14.7.2010 in Ludwigsburg, South Germany

Outside temperature peak 36 °C, sunny, light breeze
Changing temp readings / partly inconsistent data due to clouds, breeze
Concrete plates 40 x 40 cm, 6 cm strong, light grey

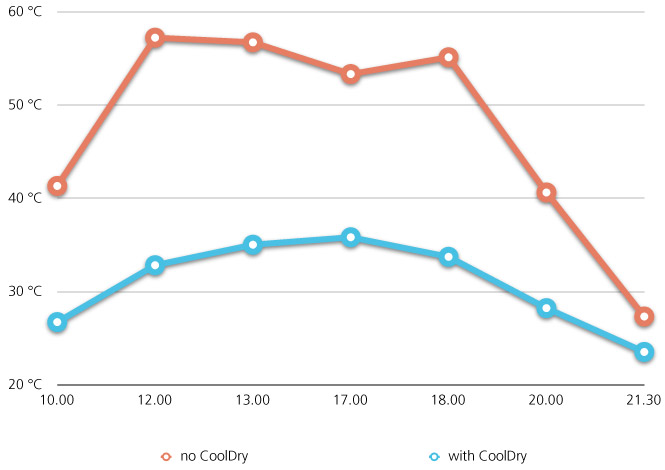

Chart A: Concrete with Membrane
Chart A: Concrete with Membrane

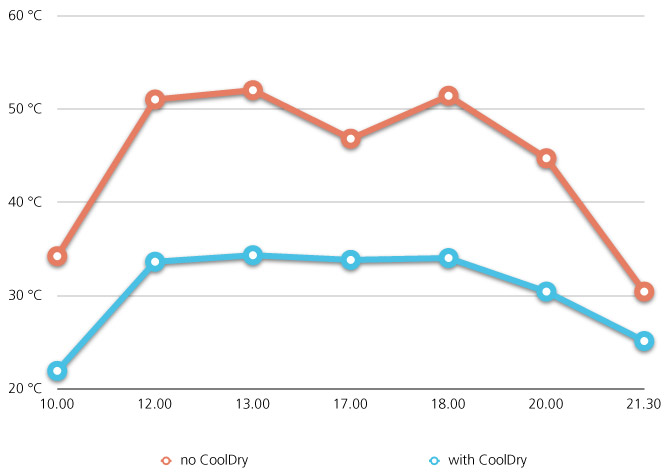

Chart B: Back of Concrete with Membrane
Chart B: Back of Concrete with Membrane

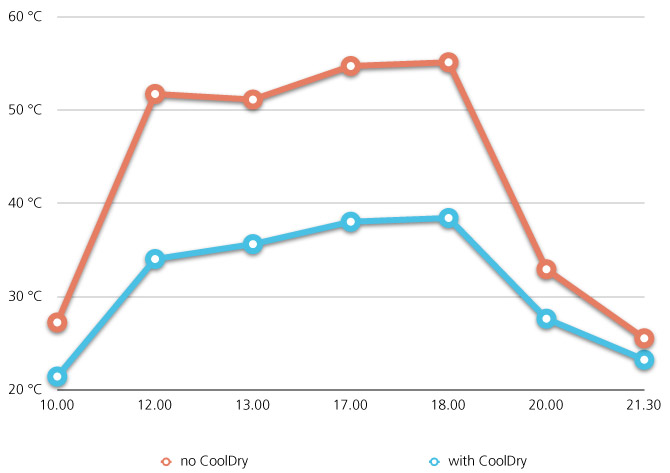

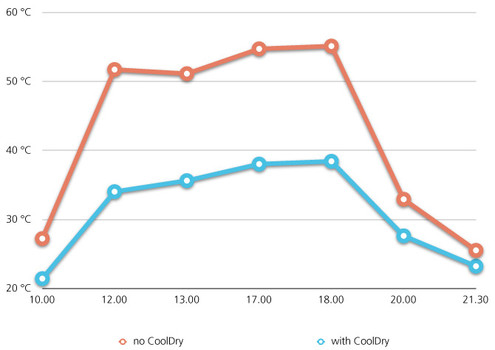

Chart C: Concrete (bare)
Chart C: Concrete (bare)

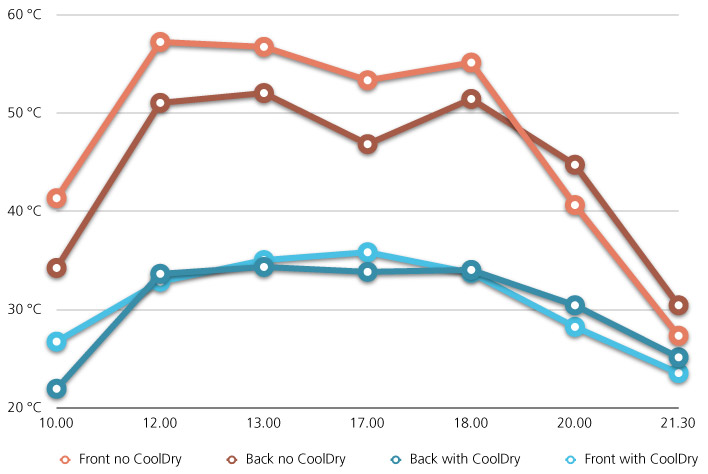

Chart D: Comparison Front/Back
Chart D: Comparison Front/Back

The back of the untreated plate is nearly as hot as the front – powerful heating system! Even at 21.30 it is still above 30 °C.

Interesting: the back of the concrete is cooler than the front for quite some time

The results are also available as a PDF file. It also contains many photos of the field test.

Click here to download.
